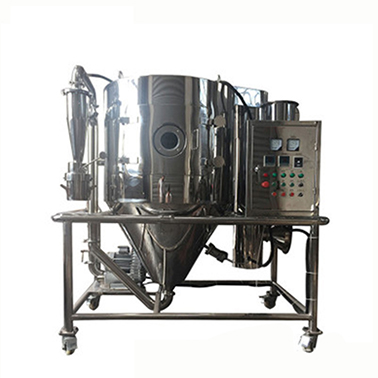

    Spray dryer machine

    Type: Spray Drying Equipment
    Power: 12KW
    Usage: Reduce Material's Moisture
    Send E-mail Consult Now
    Share with:

    Brief Introduction:

    Spray drying is the most widely used process in the liquid process forming and drying industry. It is most suitable for the production of powdered, granulated or blocky solid products from solutions, emulsions, suspensions, and plastic paste liquid materials. Therefore, when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product must meet the exact standards. Spray drying is an ideal process.


    • The drying speed is fast. After the liquid is atomized, the surface area increases. In the hot air flow, 95%-98% of the water can be evaporated in an instant. The drying time is only a few seconds, especially for the drying of heat sensitive materials.

    • The product has good uniformity, fluidity, and solubility, and the product has high purity and good quality.

    • The production process is simplified and the operation control is convenient. For liquids with a moisture content of 40-60% (up to 90% of the special materials), the powder can be dried into a powder product at one time. After drying, no pulverization and screening are required, the production process is reduced, and the purity of the product is improved. It is convenient to adjust, control and manage the particle size, density and moisture of the product within a certain range by changing the operating conditions.

    Working Principle:

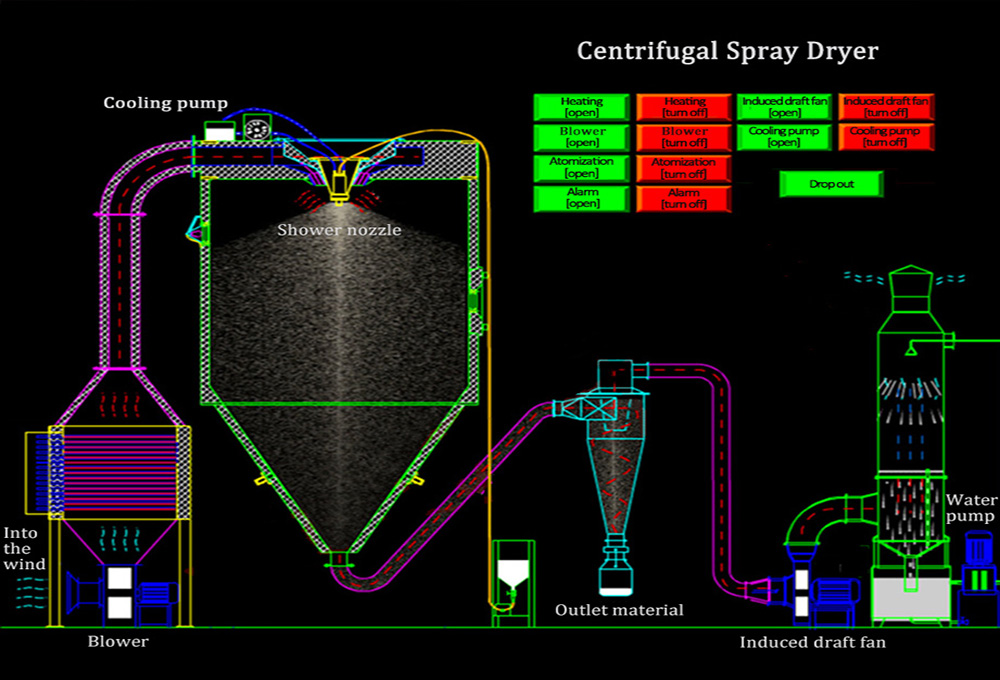

    The air is filtered and heated then enter the air distributor at the top of the dryer, and the hot air enters the drying chamber in a spiral shape evenly. The liquid is sprayed into very fine mist droplets through a high-speed centrifugal atomizer at the top of the tower. And it can be dried into a finished product in a short time by concurrent contact with hot air. The finished product is continuously discharged from the bottom of the drying tower and the cyclone separator, and the exhaust gas is evacuated by the fan.

    Technical Data:

    Model LPG-5 The total height of equipment 2000mm
    Maximum evaporation 5KG/H Nebulizer speed 24000-31000rpm
    Electric heating power 12KW temperature range 150℃-300℃((automatic control adjustment))
    Installed power 14.05KW Tower diameter/Tower height 1.1M/2.00M
    Voltage 380V,50HZ,3 phase(customizable voltage) Compressed air consumption 0.2m3/Min
    Finished product recovery rate More than 99% Equipment material Stainless steel
    Initial moisture content 50% Final moisture content 10%
