| Type： | YZ-50L | YZ-100L | YZ-150L |
| Power: | 1.5kw | 2.2kw | 3kw |
| Dimensions： | 1400*650*1950mm | 1650*700*2150mm | 1850*800*2300mm |
Send E-mail
Consult Now
Brief Introduction：

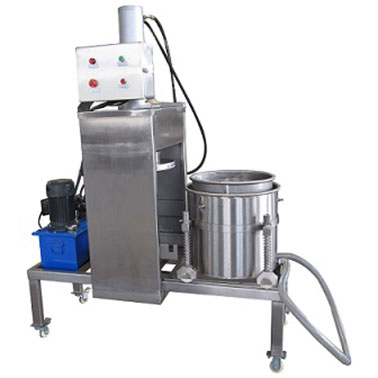

YZ series presses are special equipment for fruit, vegetable and medicinal juice extraction, and can also be used for wine manufacturing and pressing. The machine uses a hydraulic cylinder to squeeze the material in the stainless steel barrel through a special filter to squeeze out the juice. Cylinder pressure can be achieved with the “adjustable pressure gauge” to achieve the pressure you need.
Technical Data:

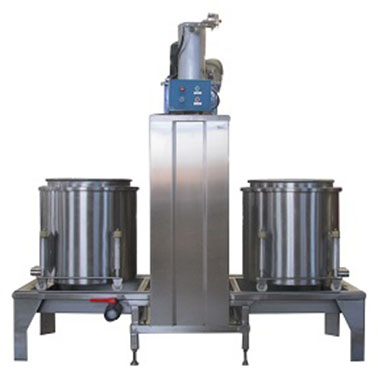

| Model | YZ-50L | YZ-100L | YZ-150L | YZ-300L | YZ-150-2 | YZ-500-2 |
| Power | 1.5kw | 2.2kw | 3kW | 4kw | 3kw | 4kw |
| Voltage | 380v | 380v | 380v | 380v | 380v | 380v |
| Material | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Volume | 50L | 100L | 150L | 300L | 150L*2 | 500L*2 |
| Dimensions | 1400*650*1950mm | 1650*700*2150mm | 1850*800*2300mm | 2150*900*2300mm | 2395*930*2340mm | 2900*1600*2300mm |
