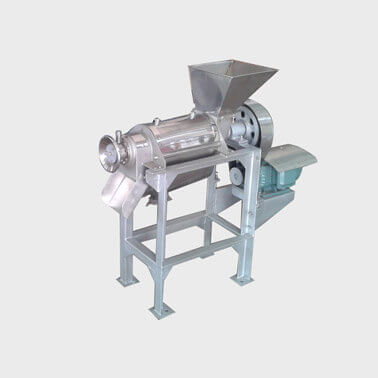

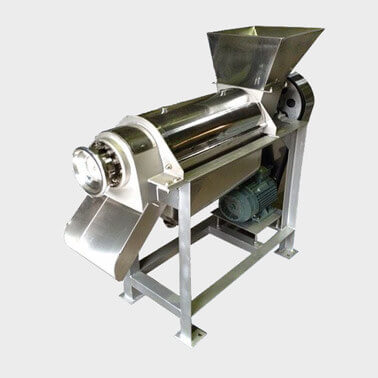

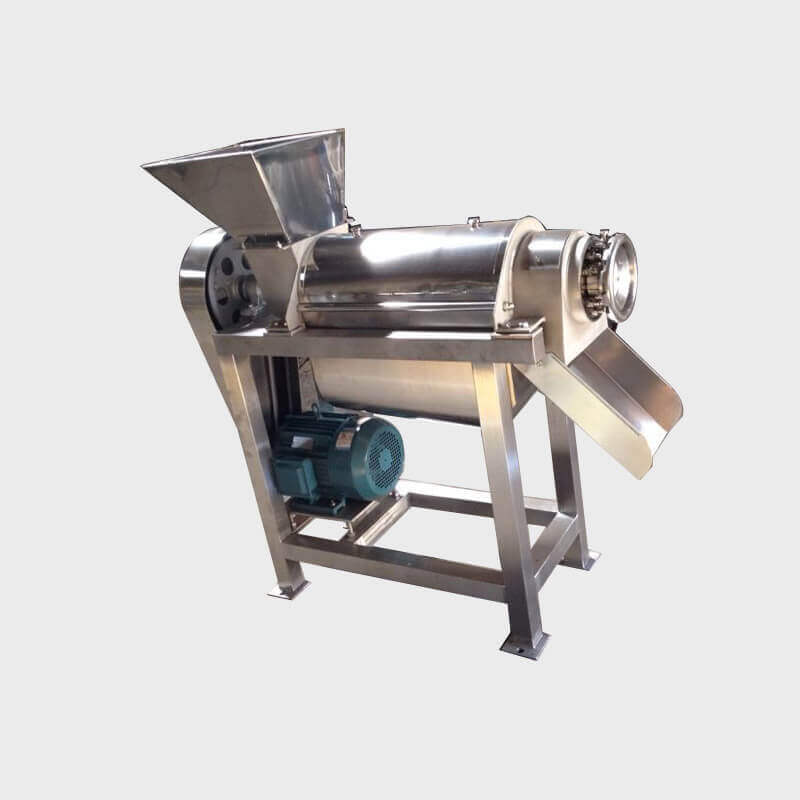

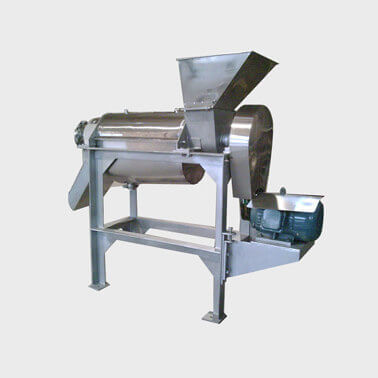

    Juice machine

    Type: LZ-0.5 LZ-1.5 LZ-2.5
    Capacity: 100-500kg/h 300-1500kg/h 600-2500kg/h
    Power: 1.5kw 4kw 11kw
    Send E-mail Consult Now
    Share with:

    Brief Introduction:

    Used to squeeze the tomato, pineapple, pear, apple and orange and other fruit and vegetable juices.

    By the former bearing, infeed hopper, spiral, filter, rear support, slag notch and other parts. Screw spindle support in the rolling bearing, the right end bearing in hand wheel bearings, motor through a pair of v-belt pulley drive screw.


    • Advanced design,compact structure,beautiful.

    • The aircraft are assembled from crusher and screw juicer two parts, automatic completion of crushing, juice, slagging process.

    • Tapered screw, large capacity, high juice.

    • High efficiency, low noise, no pollution.

    • All material contact parts are stainless steel.

    Working Principle:

    This equipment is the main component is spiral diameter along the bottom slag is expected to export direction gradually increase and pitch gradually reduce, when the material being spiral propulsion for spiral cavity volume reduction, form for material crushing. Screw spindle rotation direction from the feed hopper to slag trough direction, as the clockwise direction.

    Raw material add to the feed hopper, under the propulsion of spiral compression, the squeezing the juice through a filter at the bottom of the gravy, while the waste and the conical part of the surge tank by screw formed between the annular gap discharge, pressure regulating head along the axial movement of adjustable gap size. From the slag trough of equipment used in clockwise (to turn to when looking into the hopper shaft socket, regulating the head to the left, the gap is narrowing, conversely gap bigger.) Change the size gap, changing the resistance of slag discharge. Can change rate of slag, but if the gap is too small, the strong pressure, part of slag particles with juice by filter out, although the juice increased, but the quality of juice relative decline, the size of the gap should be depending on the user's specific technical requirements.

    Technical Data:

    Model Output (t/h) Power(kw) Overall Dimensions(mm)
    LZ-0.5 0.1-0.5 1.5 1100*265*920
    LZ-1.5 0.3-1.5 4 1350*560*1650
    LZ-2.5 0.6-2.5 11 1980×680×1620
