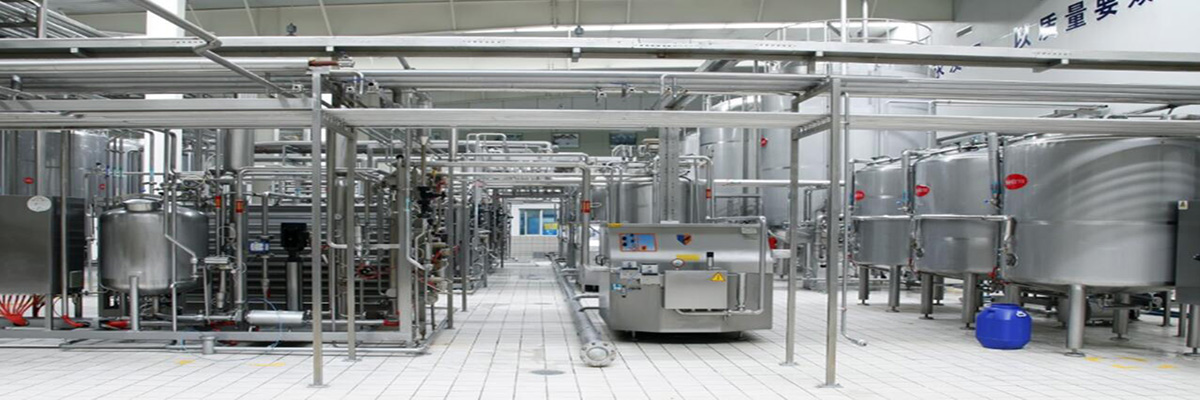

Juice Production Line

Brief Introduction

  • We can supply the equipments according to the customer process requirement(the kinds of their fruits and the capacity they need), and also can customize the equipments as the size of workshop and processing technology. Usually the processing processes are: cleaning, crushing, juicing, sterilization,filling. The machine material is 304 stainless steel, beautiful and durable.

Working Process

  • Storage tank - Elevator lifting machine - Cleaning machine - Picking machine - Elevator lifting machine – Crushing machine –Juicing - Filtration system - Concentration - Sterilization - Filling

Equipment Characteristic

Juice Production Line

  • 01

    Elevator Lifting Machine :
    For lifting and transportation of materials, artificial materials can easily fall into the hopper, continuous, uniform material will be elevated through the conveyor belt to the next step.

  • 02

    Cleaning Machine :
    It is suitable for leaning and conveyor fruits & vegetables . The device is at work of the bubble, surfing, promotion, spray high-cleaning, energy-saving, water-saving, stable and reliable equipment to maintain the original color and other characteristics.

  • 03

    Picking Machine :
    Using the mesh belt transmission to the next procedure at the same time picking a peel defect or incomplete material, picking, convenient, save time and effort and continuous operation. After picking the material by this device can continuously even promoted to cutting equipment, save a lot of labor, increase production.

  • 04

    Crushing Machine :
    Crushing the fruit, improve the juicing efficiency.

  • 05

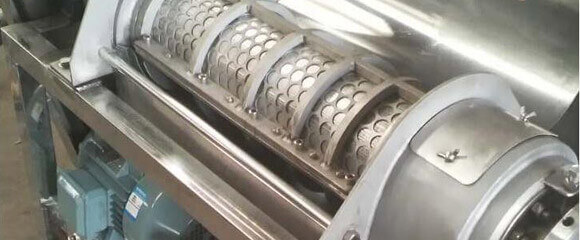

    Juicing Machine :
    Used to squeeze the tomato, pineapple, pear, apple and orange and other fruit and vegetable juices, Driven by the screw shaft extrusion, with crushing, juice, slagging function.

  • 06

    Filtration System :
    Can be used to remove the debris from juice, sugar, milk, beverages and other liquid. Two filters can be used interchangeably, can cleaning the filter during working conditions, can do continuous production, the machine should also equip with pump.

  • 07

    Concentration :
    Applicable to pharmaceutical, food, chemical and other industries on the liquid material concentration, distillation process.

  • 08

    Sterilization :
    Using high temperature pasteurization principle, deal with the juice for sterilization.

  • 09

    Filling :
    PLC controlled, driven by compressed air to complete filling, with strong stability. Applicable to sauces with particles and large concentration, like chili sauce, bean sauce, peanut butter, sesame sauce, jam, and ketchup etc.

Production Capacity

Model Output (t/h) Power(kw) Overall Dimensions(mm)
LZ-0.5 0.1-0.5 1.5 1100*265*920
LZ-1.5 0.3-1.5 4 1350*560*1650
LZ-2.5 0.6-2.5 11 1980×680×1620


1t -20t juice prodction line
